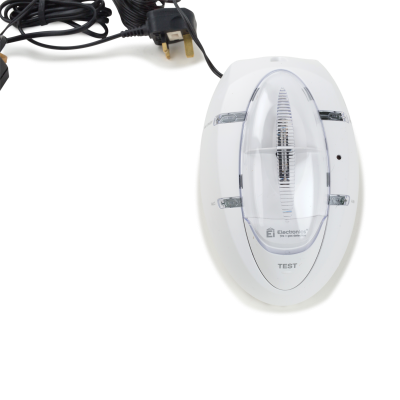

Aico EI171RF Flashing Strobe 230V

The Ei170RF kit is compatible with the 3000, Multi-Sensor Fire Alarm Ei2110e, 160e Series alarms and 140RC Series smoke and heat alarms, along with any interconnected Carbon Monoxide alarms. This kit links into the alarm system using RadioLINK wireless interconnection technology, making it easier to add into a system and causing less disruption to the occupants on installation.

The green ‘power’ indicator light on the front of the strobe unit will illuminate to show mains power is present.

If the mains power fails, the green indicator will extinguish and change to an amber flash every 4 seconds to indicate that the unit is running on battery back-up. If the battery back-up becomes depleted, the amber ‘Fault’ indicator will flash once every 4 seconds.

On receipt of a RadioLINK alarm or test signal, the strobe will flash, and the vibration pad will be activated. the red ‘Alarm’ indicator light will also flash.

Pressing the ‘Test’ button will check and activate the strobe and vibration pad. The unit will also send out a RadioLINK alarm signal that will activate all RadioLINK units in the system.

• A strobe unit designed to give warning of fire to deaf and hard of hearing occupants.
• For use with 3000, 2110e, 160e and 140RC Series smoke and heat alarms (when used with a RadioLINK base, RadioLINK + module or a SmartLINK module) and RadioLINK Carbon Monoxide (CO) alarms, it can also be used with all other RadioLINK devices/ancillaries.
• Eliminates the need for any cabling between the Ei170 RF and the smoke, heat and/or CO alarms used in the system.
• Requires 230V AC, 50Hz mains power supply.
• The unit has a built-in high-intensity Xenon strobe (flash rate 0.8Hz) with a wide light output angle.
• Built-in long life sealed lead acid rechargeable battery to provide back-up power in the event of mains failure.
• Standby capacity 7 days (followed by 15 minutes alarm) lifespan, 5 years in normal use.
• The battery is connected by plugging it into the socket in the bottom of the battery box.
• Comprehensive indicating lights on front of the unit:
  Power – Constant green to indicate mains is present, flashes amber every 4 seconds with mains absent.
  Alarm (red) – Flashes every second when the unit has been triggered.
  Fault (amber) – Flashes every 4 seconds if a fault is detected with panel/vibration pad. Flashes every 4 seconds if rechargeable back-up battery is depleted or faulty.
  RF status (blue) – Illuminates when RF signal is being sent, flashes in ‘House Code’ mode to indicate the number of units learned. Flashes every 40 seconds if RadioLINK smoke alarms have a low battery.
• Mains transformer is mounted in separate and hard-wired to the strobe unit with 4m of low voltage cable.
• Supplied with 2m of mains cable and pre-wired 13 amp plug (with a 3 amp fuse).
• Integrated ‘Test’ button on the front of the unit.
• Pressing this checks strobe and control circuitry and also send out a RadioLINK alarm signal to other units in the system.
• Connecting sockets on rear of unit as follows:
  Auxiliary sockets – Two auxiliary sockets are available on the rear of the unit to allow connection of additional strobes etc. Locking sockets (JST type VHR-2N). Each provides 12V/200mA when unit is in alarm. Can be used for any of the following: Auxiliary strobe Ei178, or for triggering a radio pager.
