Hamilton Cheriton Georgian Polished Brass 1 Gang 200VA 2 Way Push On/Off Rotary Switching Dimmer with Polished Brass Knob

• Product range: Cheriton Georgian
• Plate finish: Polished Brass
• Plate material: Metal
• Insert: Polished Brass Knob
• Inductive leading edge push on/off dimmer switch
• Gangs: 1
• Wattage: 200 VA inductive (low voltage)
• Current rating: 0.8 A
• Voltage: 220/250 V AC
• Mains frequency: 50 Hz
• Ways: 2 Way
• Minimum load: 25 VA
• Maximum load: 200 VA (low voltage)
• Switched poles: Single
• Leading Edge technology dimmer - for use with low voltage toroidal transformers and some LED lamps
• Tungsten filament GU10 lamps must be branded with a fuse base
• When using mains voltage halogen lamps, dimmers should be de-rated by 25%
• When dimming LED lamps, dimmers should be de-rated by 75%
• It is recommended to contact the manufacturer of the transformer to confirm that it is dimmable and is considered to be an inductive load
• For further information on compatibility, please contact Hamilton's Technical department

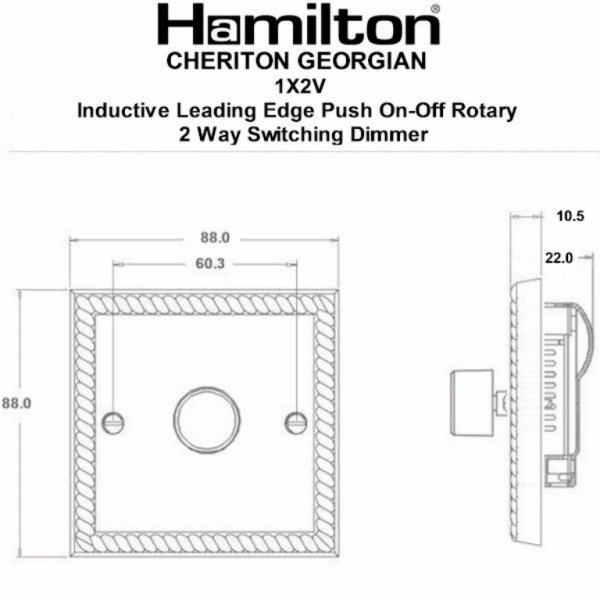

• Plate size: Single
• Plate width: 88 mm
• Plate height: 88 mm
• Plate depth: 10.5 mm
• Minimum wall box depth: 35 mm
• CE marked
• IP rating: IP2XD
• Ambient operating temperature: -5 to +40 °C
• Internal Use Only
• Maximum installation altitude: 2,000 m
• Face plate must be earthed
• Terminal capacity:
  • 2 x 1 mm²
  • 2 x 1.5 mm²
• Earth terminal capacity:
  • 5 x 1 mm²
  • 4 x 1.5 mm²
  • 3 x 2.5 mm²
  • 1 x 4 mm² Multi-strand
  • 1 x 6 mm²
• BS EN ISO standard(s): BS EN 60669-1
