Hamilton 90DTVFW Cheriton Georgian Polished Brass 1 Gang Non-Isolated Female TV Socket with White Insert

Click to enlarge

Hamilton 90DTVFW Cheriton Georgian Polished Brass 1 Gang Non-Isolated Female TV Socket with White Insert

Product Code: 90DTVFW

Hamilton Cheriton Georgian Polished Brass 1 Gang Non-Isolated Female TV Socket with White Insert

£ 59.06 excl VAT
Unit:


Estimated Lead Time: 3-5 days

Hamilton Cheriton Georgian Polished Brass 1 Gang Non-Isolated Female TV Socket with White Insert

  • Product range: Cheriton Georgian
  • Plate finish: Polished Brass
  • Plate material: Metal
  • Insert: White Insert
  • Non-isolated female television socket
  • Gangs: 1
  • TV Outlet (IEC 169-2 female socket) usually used for FM (DAB)
  • DAB compatible
  • TV DC frequencies: 5 - 2200 MHz

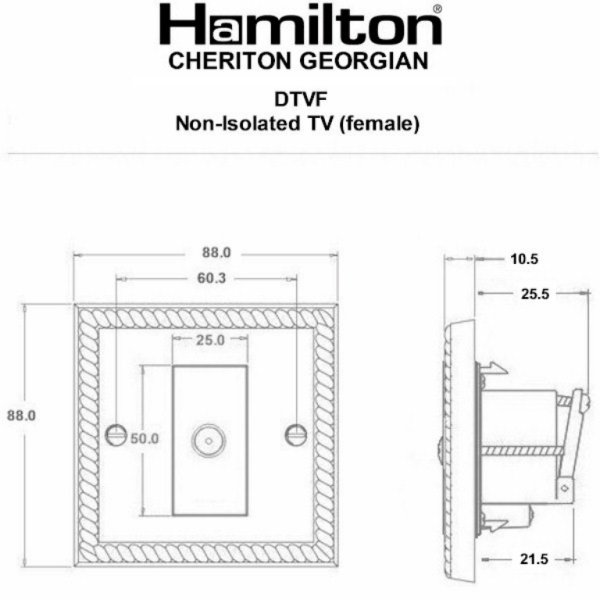

  • Plate size: Single
  • Plate width: 88 mm
  • Plate height: 88 mm
  • Plate depth: 10.5 mm
  • Minimum wall box depth: 35 mm
  • IP rating: IP2XD
  • Ambient operating temperature: -5 to +40 °C
  • Internal Use Only
  • Maximum installation altitude: 2,000 m
  • Must be earthed (ref BS7671 415.2.1)
  • Earth terminal capacity:
    • 5 x 1 mm²
    • 4 x 1.5 mm²
    • 3 x 2.5 mm²
    • 1 x 4 mm² Multi-strand
    • 1 x 6 mm²
  • BS EN ISO standard(s): BS 5733 + BS EN 50083-2: 2012/A1:2015 + BS EN 61169-2:2007
