Hamilton Cheriton Georgian Antique Brass 13A Double Pole Switched Fused Spur, Neon and Cable Outlet with Antique Brass Insert and Black Surround
- Product range: Cheriton Georgian
- Plate finish: Antique Brass
- Plate material: Metal
- Insert: Antique Brass Insert
- Surround: Black Surround
- Double pole switched fused spur with neon and cable outlet
- Gangs: 1
- Current rating: 13 A
- Voltage: 220/250 V AC
- Mains frequency: 50 Hz
- Maximum load: 13 Amps
- Switched poles: Double
- Cable outlet size minimum: 0.75 mm²
- Cable outlet size maximum: 2.5 mm²
- Cable outlet fitted with clamps
- Plate size: Single

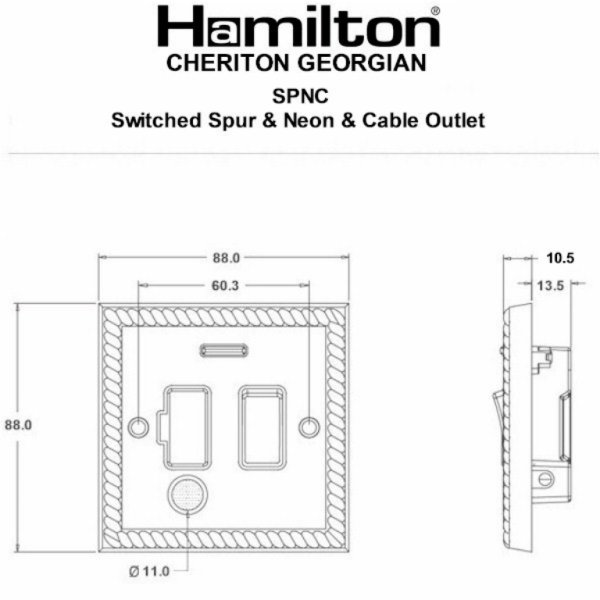

- Plate width: 88 mm
- Plate height: 88 mm
- Plate depth: 10.5 mm
- Minimum wall box depth: 35 mm
- Contact gap minimum: 3 mm
- CE marked
- IP rating: IP2XD
- Ambient operating temperature: -5 to +40 °C
- Internal Use Only
- Maximum installation altitude: 2,000 m
- Must be earthed
- Terminal capacity:
- 3 x 2.5 mm²
- 2 x 4 mm² Multi-strand
- 1 x 6 mm²
- Earth terminal capacity:
- 6 x 1 mm²
- 5 x 1.5 mm²
- 3 x 2.5 mm²
- 2 x 4 mm² Multi-strand
- 1 x 6 mm²
- BS EN ISO standard(s): BS 1363-4
