Product Code: UH8

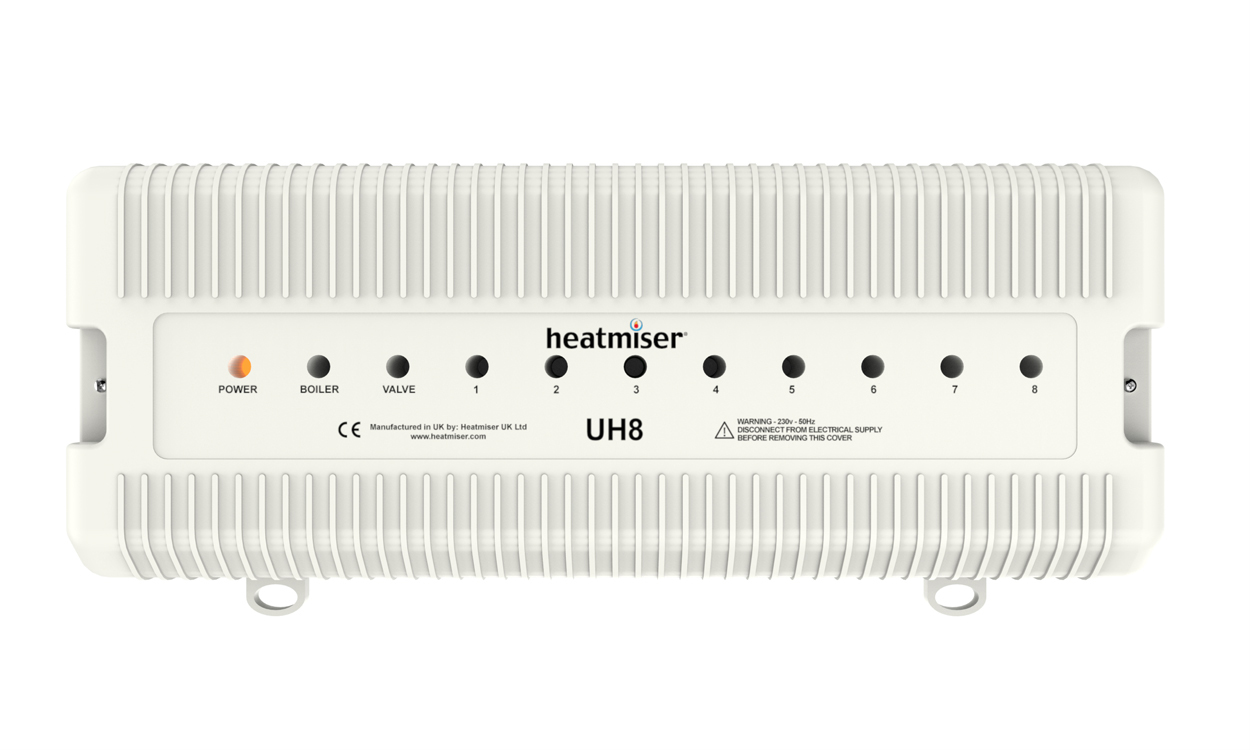

Heatmiser UH8 - 8 Zone 230v Underfloor Heating Wiring Centre
The Heatmiser UH8 underfloor heating wiring centre is designed to work with our 4 channel 230v time clock (TM4) and 230v Set back thermostat (DS-SB) but equally could be used with any 230v room thermostat.
Up to 8 zones can be controlled from the UH8. On board the UH8 are two heating time channels, each zone allows you to specify which time channel it should follow. 2 additional time channel connections are provided for hot water control or other auxiliary devices. On demand from any zone, a 230v output is provided to switch the relevant zone actuator, underfloor heating pump and valve. A volt free connection is supplied for the boiler, making it compatible with almost all types of boilers.
A simple slide switch makes zone 8 suitable for controlling a radiator zone. When used for controlling radiators, zone 8 does not enable the underfloor heating pump, valve and boiler.Up to 4 actuators can be connected to each zone.
Parcels are generally dispatched on the same day (before 1pm) or the next working day after receipt of payment. Parcels are shipped via our preferred couriers using a number of delivery options:
This is chosen during the checkout process.
Some non-stock items may take upto 14 days, where this is the case you will be informed within 24hrs.
Special Delivery - We can offer next day delivery and timed deliveries where required, these are on a price on application basis so please call us prior to placing your order so we can advise costs.
Shipping fees include handling and packing fees as well as postage costs. We advise you to group your items in a single order, and we will endeavour to group two distinct orders placed separately together, however this cannot be guaranteed. As a result shipping fees may apply to each of them if placed separately. Your package will be dispatched at your own risk, but special care is taken to protect fragile objects.
| Product | Wiring Centre |
| Power Type | 230V |
| Brand | Heatmiser |
